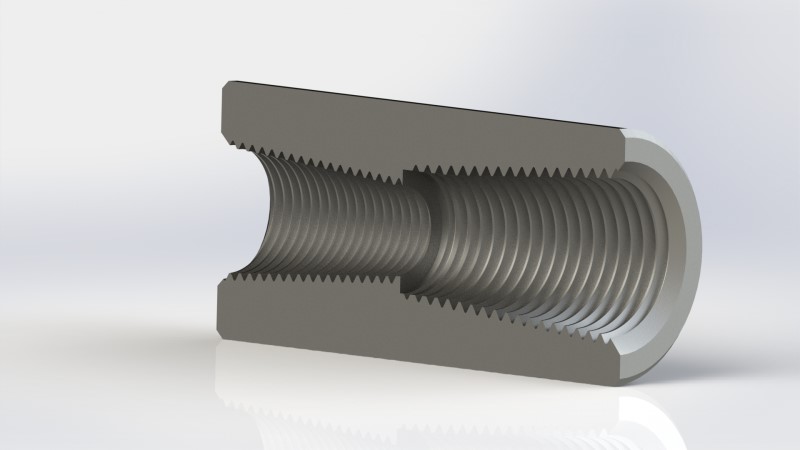

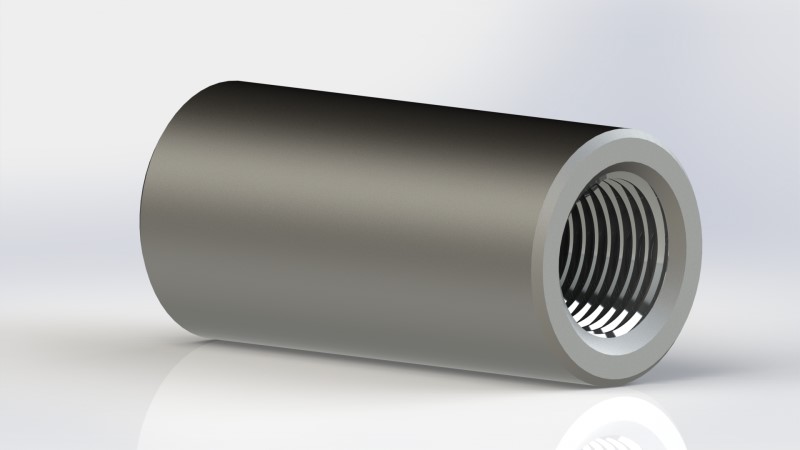

Transition Coupler 25-20mm

Part Number: TC2520

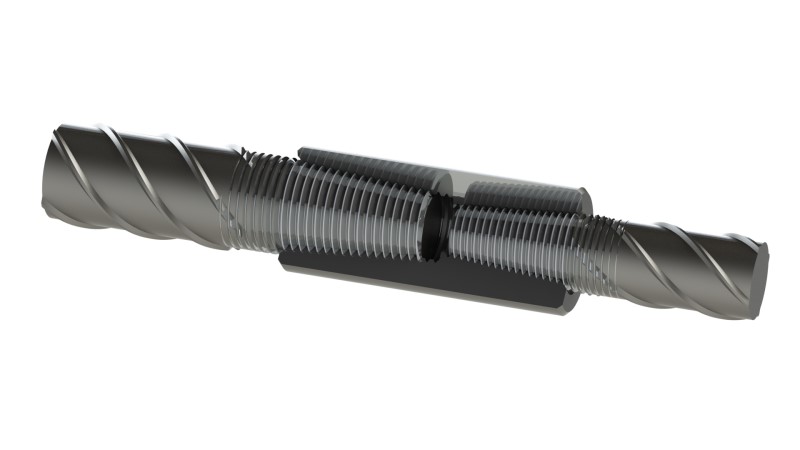

  • Designed to join bar to bar connection
  • Different size rebar where one bar is free to rotate
  • Slim Design & Maintains Concrete Cover
  • Installs Quickly

Would you like to learn more about this product? Add this product to your quote request, our technical agents will reach out to discuss, etc. etc.

  •   Length (L1)    73 mm
  •   Diameter (D1)    37mm
  •   Bar Depth (BD1)   37mm
  •   Bar Depth (BD2)   28.5mm
  •   Bar Gap (BG1)    13mm

  •   Length (L1)   2.87 in
  •   Diameter (D1)   1.46 in
  •   Bar Depth (BD1)   1.46 in
  •   Bar Depth (BD2)     1.12 in
  •   Bar Gap (BG1)    .51 in

  •   Finish    Plain
  •   Material    1045 Cold Rolled Steel
  •   Pack Qty
  •   Weight (kg)    .45 kg

Design Standard and Fitment

Standards

AASHTO - ACI 318 Type 1 - ACI 318 Type 2 - ACI 349 - ACI 359 - AS3600 - CAN/CSA - N287.2/.3/.4 - ICC ES AC133 - US Army Corp of Engineers - CALTRANS Service and Ultimate

Fitment

Bar dimensions and weights listed may vary by region. Coupler sizes not shown may be available by special order. Contact your Rhino representative for more information

Warning

RHINO products shall be installed and used only as indicated in RHINO's product instruction sheets and training materials. Instruction sheets are available at www.rhinoconnections.com and from your RHINO customer service representative. Improper installation, misuse, misapplication or other failure to completely follow RHINO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
